Electro-Hydraulic CNC Press Brake

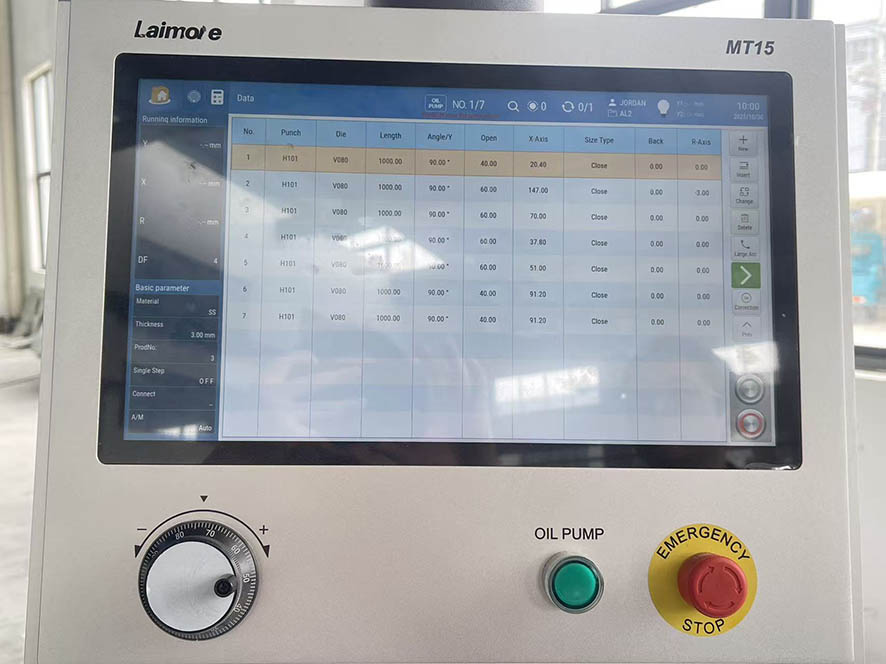

CNC System: Laimore MT15

  The CNC system of a press brake is the brain of the entire machine, responsible for controlling the ram, backgauge, and worktable compensation to ensure precise bending angles, dimensions, and positioning. It serves as the core control unit of the press brake, automatically managing the movement of each axis based on the programmed bending parameters to achieve accurate and efficient bending operations.

Hydraulic Valve Group：

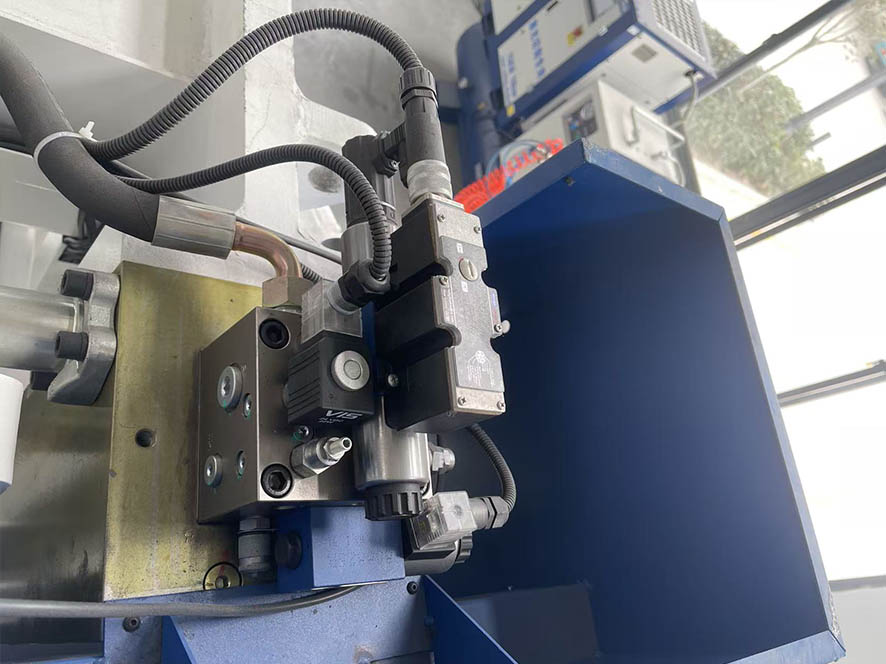

  The hydraulic valve group is the core control component of the hydraulic system, mainly responsible for regulating the flow direction, pressure, and flow rate of hydraulic oil to achieve precise movement and synchronized control of the ram. It operates according to the control signals from the CNC system, coordinating the flow and pressure distribution of the hydraulic oil to ensure ram synchronization, precise bending, and safe operation.

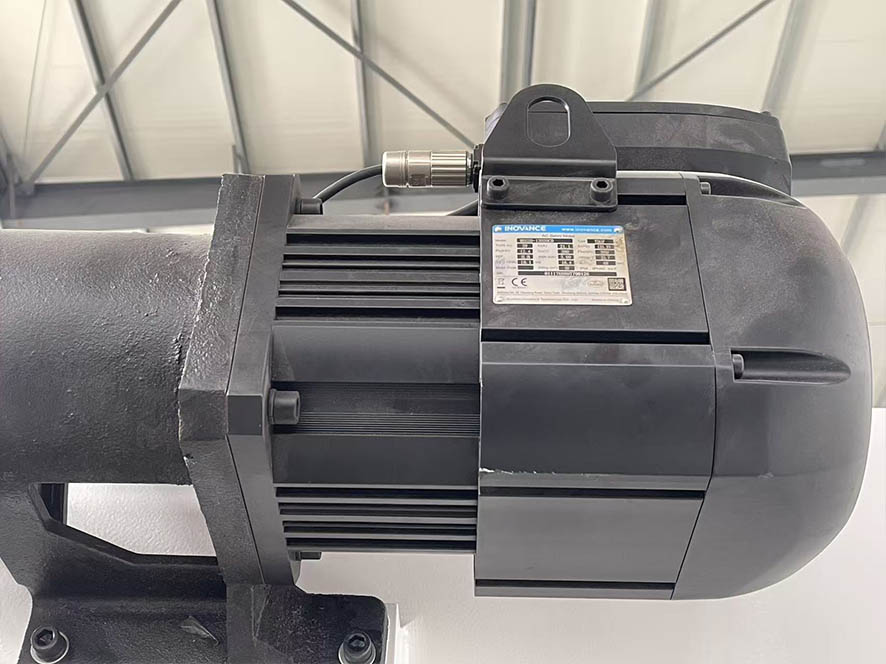

Servo Motor: China INOVANCE

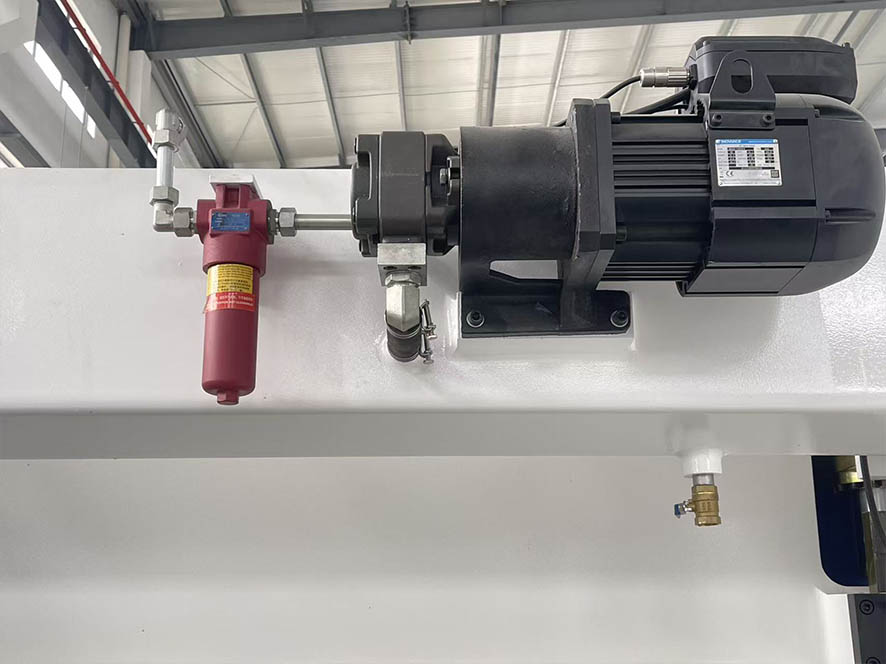

  The servo motor is one of the key driving components of the entire system, used to precisely control the movement of the ram in the hydraulic system. It is a high-precision and controllable motor that can accurately adjust speed, position, and torque according to control signals, and is widely used in CNC machinery.

Ball Screw&Linear Guide：Taiwan Hiwin

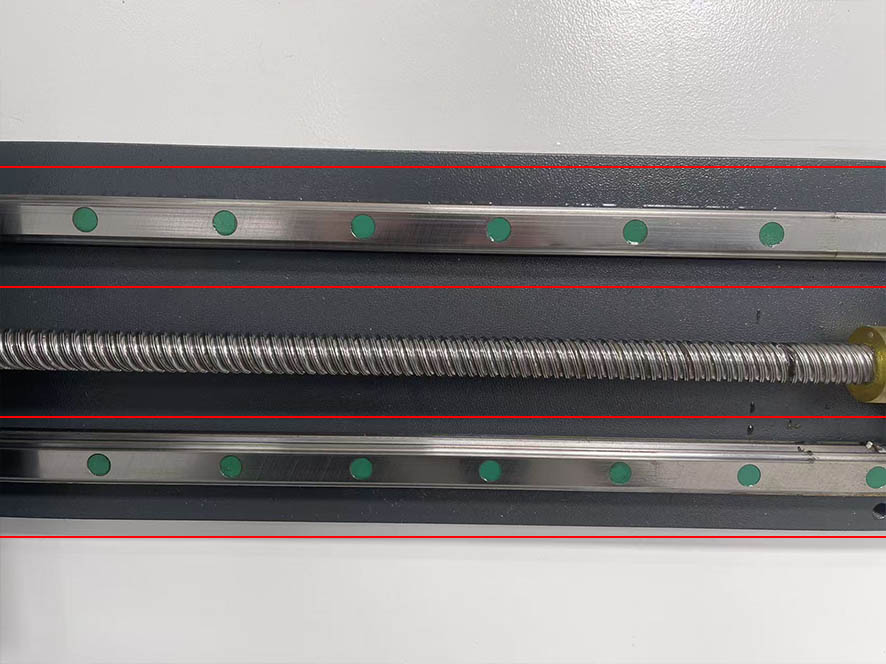

  The ball screw is a key transmission component in the backgauge system, used to achieve high-precision linear positioning and movement. It enables the backgauge system to maintain stable, fast, and accurate motion during the bending process, serving as an essential foundation for the high-performance operation of the press brake.

  The linear guide is an essential component of the backgauge system and the ram guiding mechanism, designed to ensure that all moving parts travel smoothly and accurately along a straight path. It allows the machine to operate more smoothly, precisely, and durably during the bending process, making it a fundamental structure indispensable to modern CNC press brakes.

Quick Clamp

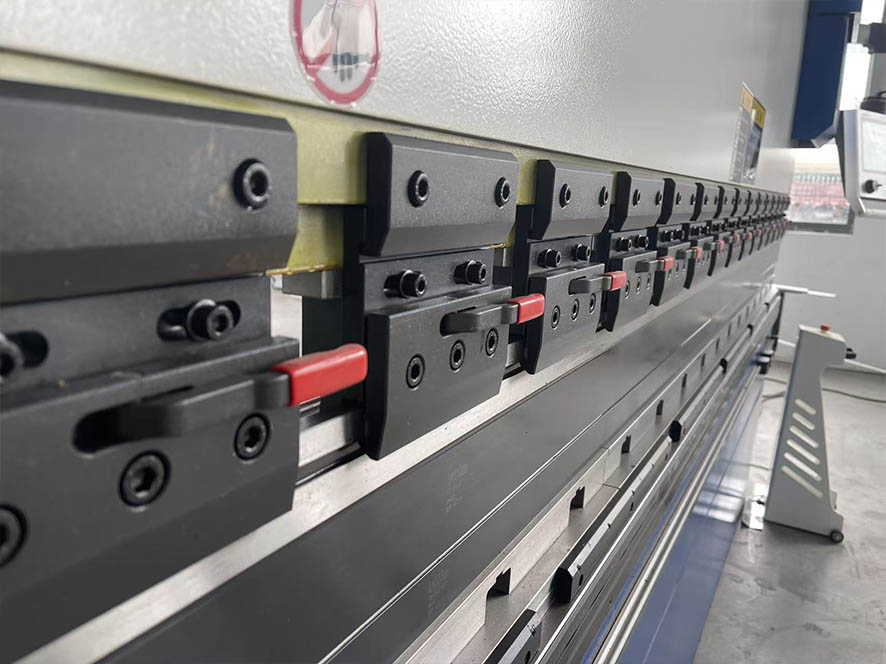

  The quick clamp is a specialized mechanism designed for the rapid installation and replacement ofpunching on press brakes. It significantly reduces tool changeover time, enhances production efficiency, and ensures high precision and operational safety during clamping operations.

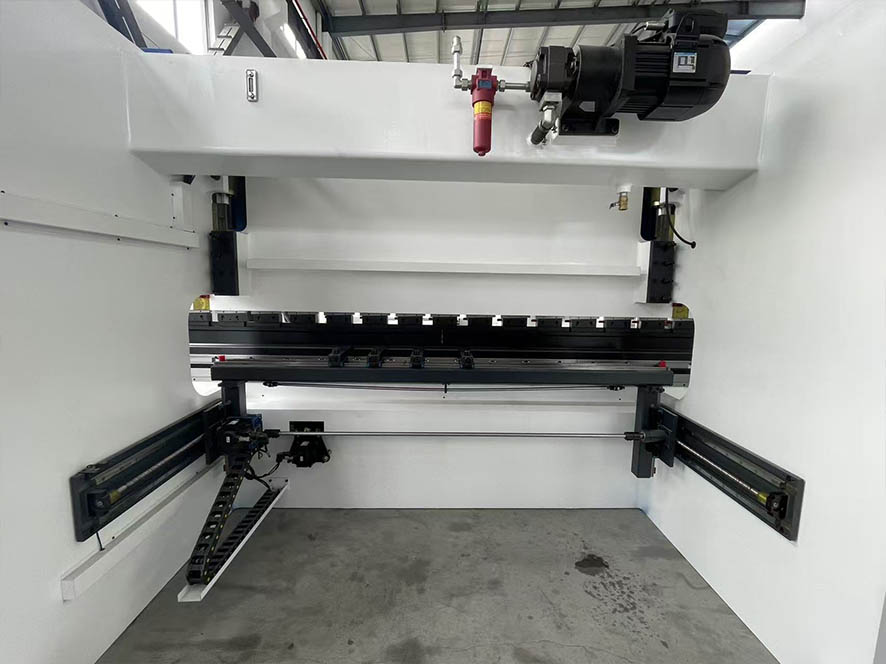

Back Gauge

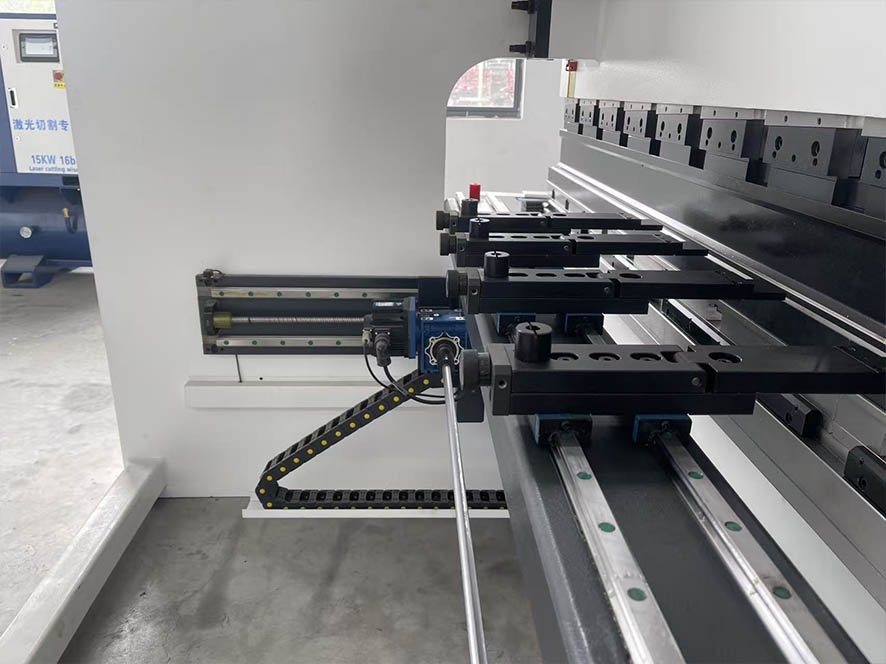

  The backgauge is an essential component used to position sheet metal workpieces for bending. It utilizes a servo motor-driven ball screw or linear guide system to achieve high-precision adjustment and repeatable positioning of the workpiece.

Configuration List

  Our component suppliers are all internationally renowned brands, ensuring reliable quality and worry-free after-sales service.

Product Specifications

  All of our component suppliers are globally recognized brands, guaranteeing dependable quality and seamless after-sales support

Structural Design

  Bending machine structure, developed by JIANMENG Smart, uses PRO/E 3D simulation and finite element analysis to ensure the frame’s strength and rigidity, meeting industry standards.Hydraulic Press Brake frame is made from Q235b steel, combined with shot blasting, anti-rust coating, and vibration stress-relieving technology, boosting durability and stability.

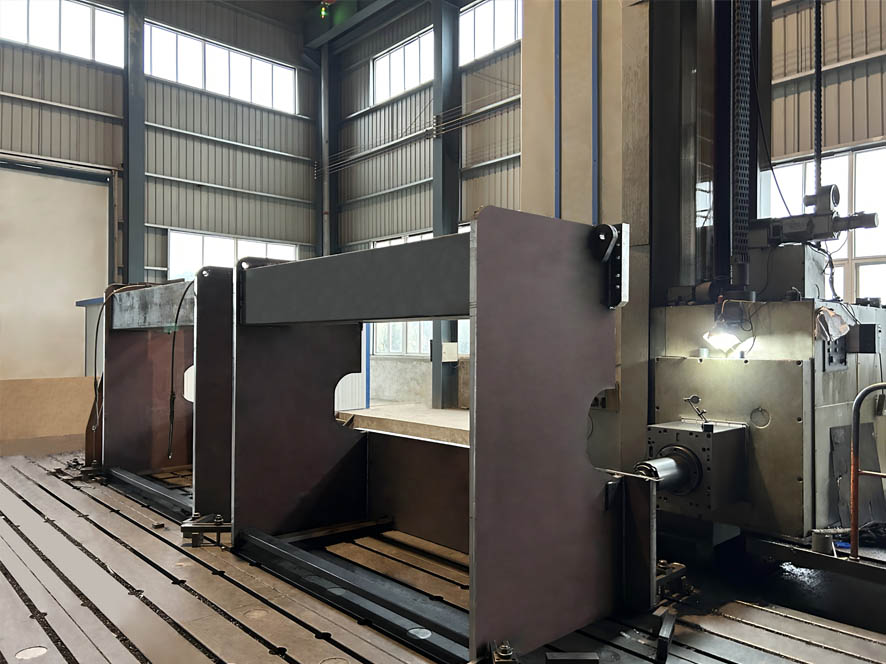

Precision Processing

  Hydraulic bending machine structure frame includes the worktable, slider, and wall panels, processed with a large CNC machine to ensure precision. The slider and worktable are synchronized through an electro-hydraulic servo system, with real-time error detection and dynamic correction, ensuring optimal processing accuracy. This high precision allows the Press Brake to handle complex tasks under uneven loads and improve product yield.

Products & Services

Our Services

Application

Home Appliance Industry

    The hydraulic bending machine is widely used in the home appliance industry for manufacturing metal enclosures and internal sheet metal components of products such as refrigerators, washing machines, air conditioners, microwave ovens, and electric ovens. With its high-precision electro-hydraulic servo control system, the press brake can perform complex and multi-angle bending operations, ensuring accurate dimensions and smooth surfaces, which provide high-quality appearance and structural support for household appliances.

Construction Industry

    The hydraulic bending machine is mainly used in the construction industry for processing various metal components such as curtain wall panels, steel structure supports, door and window frames, stair handrails, and roof decorations. With a high-precision electro-hydraulic servo control system, The hydraulic bending machine enables efficient processing of complex bending shapes and large metal sheets, ensuring the dimensional accuracy and surface quality of the components.

Decorative Industry

  The hydraulic press brake is widely used in the decoration industry for processing various metal decorative components, such as stainless steel panels, metal ceilings, door edge covers, and decorative trims.The hydraulic bending machine enables high-precision bending and complex shaping, ensuring smooth and aesthetically pleasing surfaces that enhance overall decorative effects. With the stable control of the hydraulic system, the machine operates smoothly and achieves high forming accuracy, making it ideal for architectural and interior decoration projects.
