Electro-Hydraulic Press Brake

CNC System: Laimore MT15

  The CNC system of a press brake is the brain of the entire machine, responsible for controlling the ram, backgauge, and worktable compensation to ensure precise bending angles, dimensions, and positioning. It serves as the core control unit of the press brake, automatically managing the movement of each axis based on the programmed bending parameters to achieve accurate and efficient bending operations.

Hydraulic Valve Group：

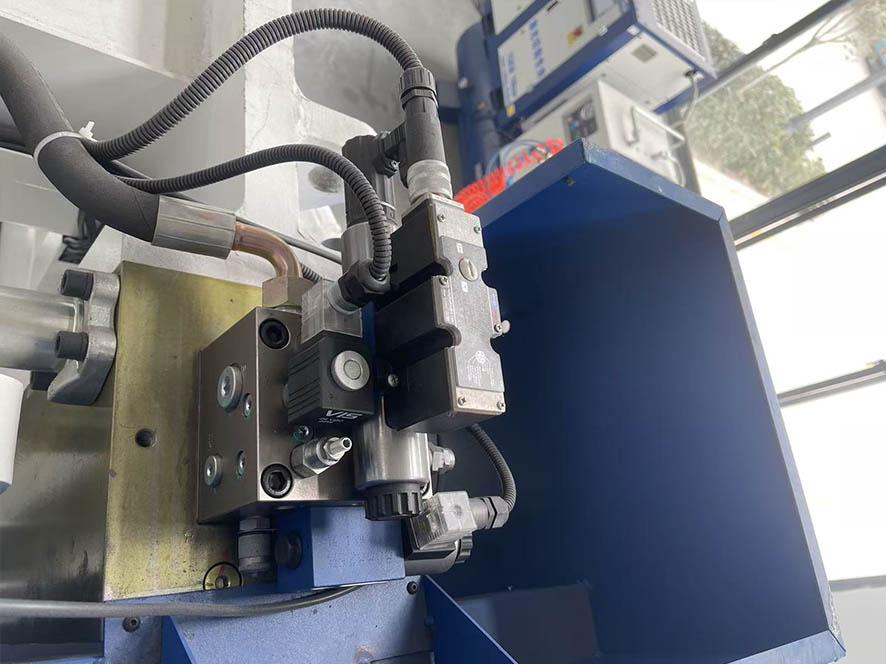

  The hydraulic valve group is the core control component of the hydraulic system, mainly responsible for regulating the flow direction, pressure, and flow rate of hydraulic oil to achieve precise movement and synchronized control of the ram. It operates according to the control signals from the CNC system, coordinating the flow and pressure distribution of the hydraulic oil to ensure ram synchronization, precise bending, and safe operation.

Servo Motor: China INOVANCE

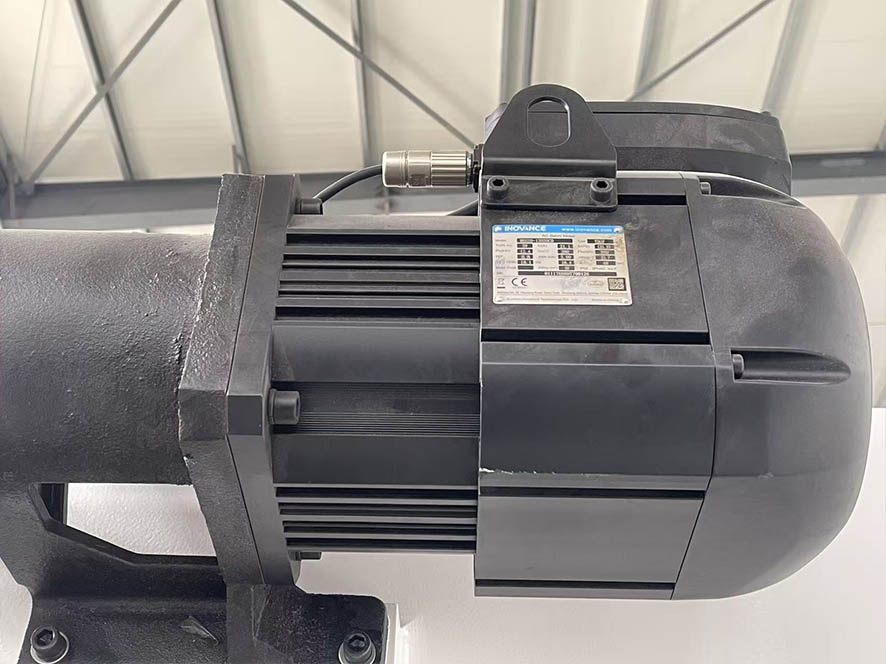

  The servo motor is one of the key driving components of the entire system, used to precisely control the movement of the ram in the hydraulic system. It is a high-precision and controllable motor that can accurately adjust speed, position, and torque according to control signals, and is widely used in CNC machinery.

Ball Screw&Linear Guide：Taiwan Hiwin

  The ball screw is a key transmission component in the backgauge system, used to achieve high-precision linear positioning and movement. It enables the backgauge system to maintain stable, fast, and accurate motion during the bending process, serving as an essential foundation for the high-performance operation of the press brake.

  The linear guide is an essential component of the backgauge system and the ram guiding mechanism, designed to ensure that all moving parts travel smoothly and accurately along a straight path. It allows the machine to operate more smoothly, precisely, and durably during the bending process, making it a fundamental structure indispensable to modern CNC press brakes.

Quick Clamp

  The quick clamp is a specialized mechanism designed for the rapid installation and replacement ofpunching on press brakes. It significantly reduces tool changeover time, enhances production efficiency, and ensures high precision and operational safety during clamping operations.

Back Gauge

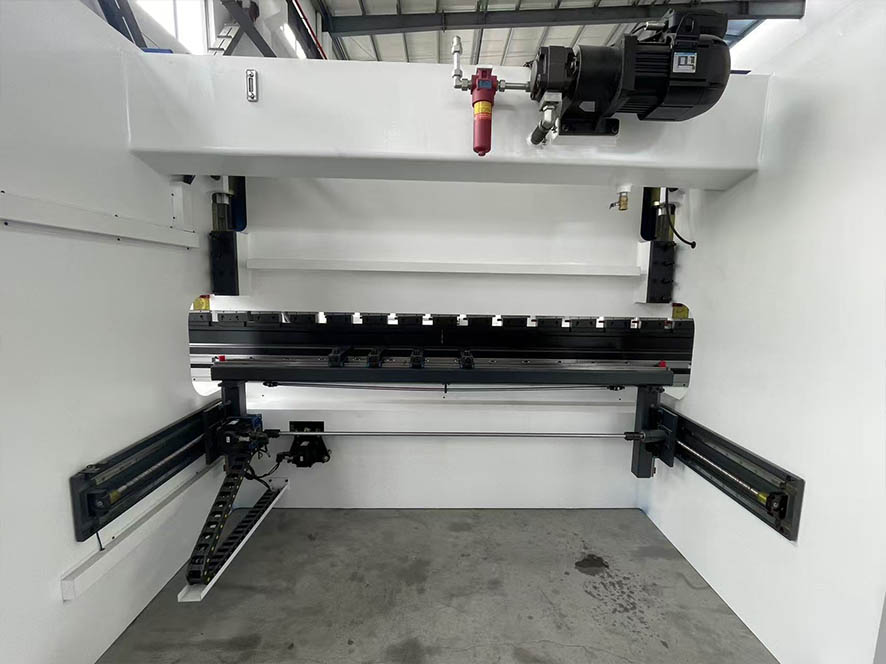

  The backgauge is an essential component used to position sheet metal workpieces for bending. It utilizes a servo motor-driven ball screw or linear guide system to achieve high-precision adjustment and repeatable positioning of the workpiece.

Product Specifications

Configuration List

  All of our component suppliers are globally recognized brands, guaranteeing dependable quality and seamless after-sales support.

Structural Design

  Designed by JIANMENG Smart, the bending machine’s structure utilizes PRO/E 3D simulation and finite element analysis to ensure the frame meets required strength and stiffness standards. The Hydraulic Press Brake frame is made from Q235B steel and undergoes shot blasting, anti-corrosion coating, and vibration stress-relief treatments to improve its stability, durability, and long-term reliability.

Precision Processing

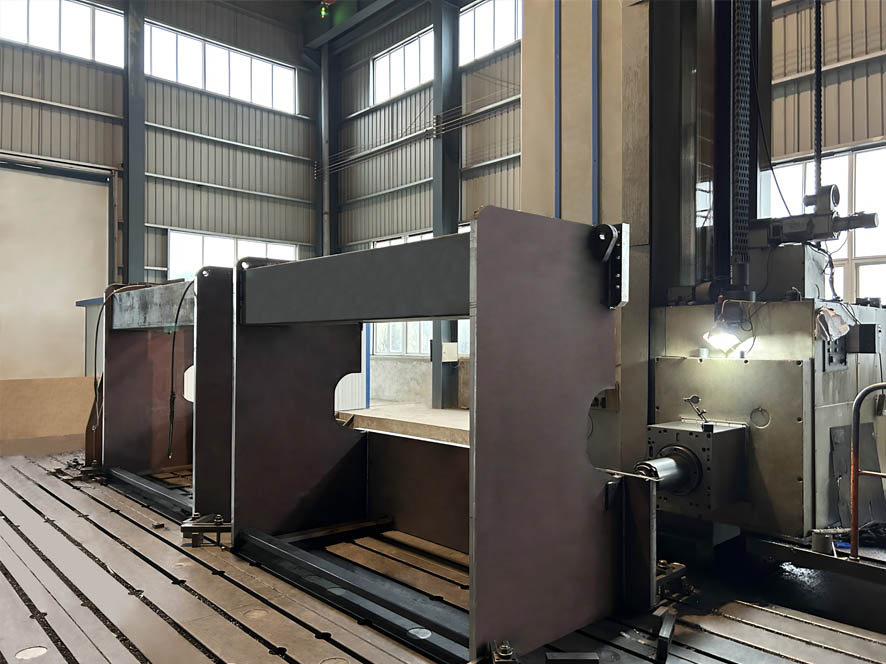

  The hydraulic bending machine’s structure is composed of the worktable, slider, and side panels, all precisely machined on a large CNC system to ensure high accuracy. The slider and worktable are synchronized through an electro-hydraulic servo system, which provides real-time error detection and dynamic correction for precise operation. This high level of accuracy allows the Press Brake to handle complex bending tasks even under uneven loads, optimizing product yield.

Products & Services

Our Services

  JIANMENG provides not only advanced machinery but also full-spectrum after-sales support. Our services cover everything from project planning and production oversight to operator training, maintenance, and supply of spare parts, ensuring optimal performance and efficiency throughout the machine’s lifecycle.

Application

Home Appliance Industry

  The hydraulic bending machine is widely used in the home appliance industry to manufacture metal enclosures and internal sheet metal components for products such as refrigerators, washing machines, air conditioners, microwave ovens, and electric ovens. With a high-precision electro-hydraulic servo control system, the Press Brake can perform complex, multi-angle bending operations, ensuring accurate dimensions and smooth surfaces, while providing both an attractive appearance and dependable structural support for household appliances.

Construction Industry

  The hydraulic bending machine is mainly employed in the construction sector for forming various metal components, such as curtain wall panels, steel structural supports, door and window frames, stair handrails, and roof decorations. Equipped with a high-precision electro-hydraulic servo control system, it efficiently manages complex bends and large metal sheets, delivering precise dimensions and superior surface quality.

Decorative Industry

  The hydraulic press brake is widely used in the decoration industry to produce a range of metal decorative components, such as stainless steel panels, metal ceilings, door edge trims, and other decorative elements. The machine provides precise bending and complex shaping, ensuring smooth, aesthetically pleasing surfaces that enhance the overall decorative appeal. With the stable control offered by its hydraulic system, it operates reliably and achieves high forming accuracy, making it ideal for architectural and interior decoration applications.
