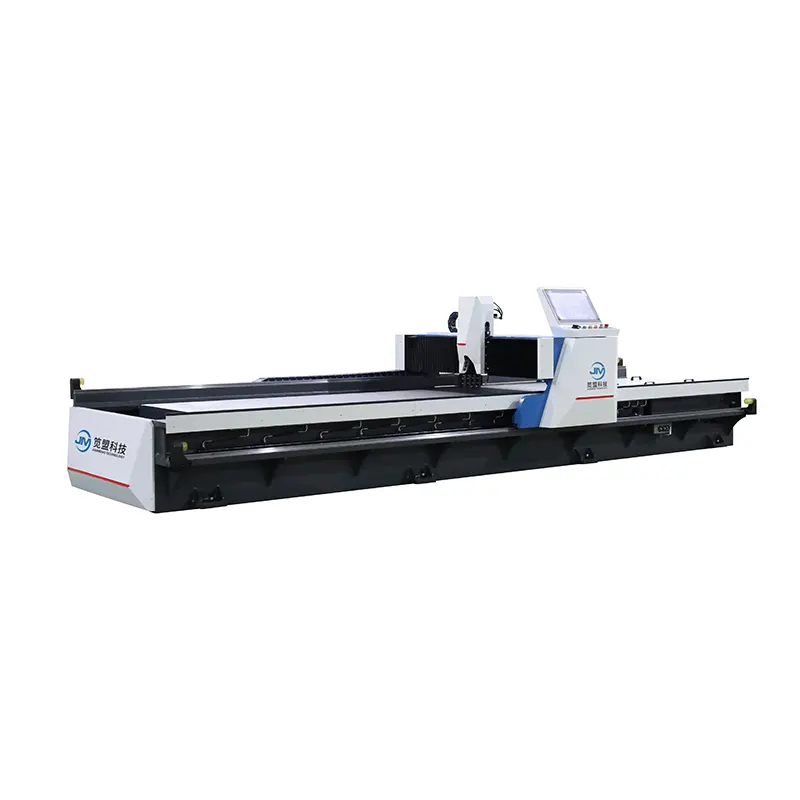

Horizontal Double Drive V Cutting Machine For Stainless Steel Plate
  • Horizontal Double Drive V Cutting Machine For Stainless Steel PlateHorizontal Double Drive V Cutting Machine For Stainless Steel Plate

Horizontal Double Drive V Cutting Machine For Stainless Steel Plate

The Chinese professional Horizontal Double Drive V Cutting Machine For Stainless Steel Plate manufacturer JM has over 10 years history in V grooving machine processing. Its horizontal double drive V cutting machine for stainless steel plate can make processing is stable and efficient.

Send Inquiry

Product Description

The V grooving machine manufacturer JM in China has the best horizontal double drive V cutting machine for stainless steel plate. The crossbeam of this machine is driven by double servo motors, equipped with double high-power planetary reducer, running smoothly.

Product Features:

1.The machine base and beam are designed using a frame structure, utilizing low alloy high-strength structural steel for the worktable.

2. Surface blasting with better painting appearance.

3. The horizontal double drive V cutting machine for metal plates supports fixed-point grooving, processing of dissimilar work.

4. Crossbeam feeding and cutting with low noise.


Technical data of Horizontal Double Drive V Cutting Machine For Stainless Steel Plate

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

Components of Horizontal Double Drive V Cutting Machine For Stainless Steel Plate


- CNC system with large touch screen: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Servo motor: Taiwan Superior

- Button: France Schneider

- Micro relay: France Schneider

- Thermal relay: France Schneider

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Circuit breaker: France Schneider

- AC Contactor: France Schneider

- Alloy knife: Korea Korloy

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus

- Single/double air switch : France Schneider



Applications Industry:

Jianmeng’s horizontal double drive V cutting machine brings good economic benefits in many industries , such as:

- Stainless steel processing

- Bathroom

- Architectural decoration

- Kitchenware

- Elevator

FAQ


Q: How long it takes you to provide the designing options for us?

A: For standard horizontal double drive V cutting machine for metal plates, we can offer you designing options at any time. For non-standard customized machine, we need 3 working days.


Q: Which certificate do you have for your equipment?

A: CE, ISO


Q: Are you a factory or a trading company?

A: We are a manufacturer. We have over 10 years of production experience
