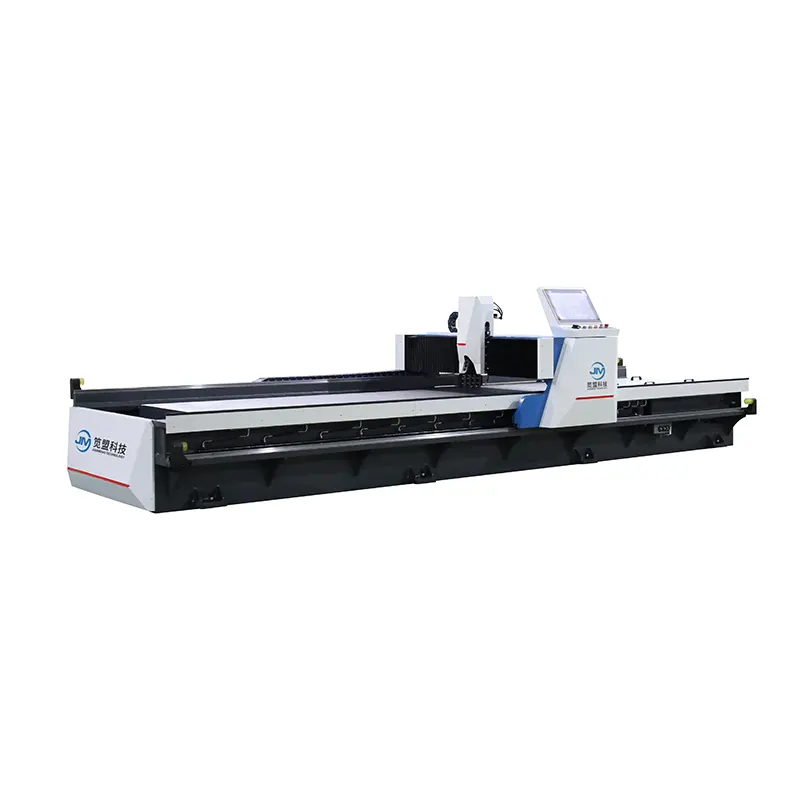

Horizontal Double Drive V Cutting Machine

The Chinese professional manufacturer of V grooving machine JM has excellent equipment and after-sales service, the horizontal double drive V cutting machine from it supports fixed-point V-shaped cutting.

Send Inquiry

Product Description

JM is Chinese manufacturer of V grooving machine with rich experience, the horizontal double drive V cutting machine has high economic benefits in market.

Product Features:

1. Double rack and pinion drive with servo driver, accurate positioning.

2. The base and crossbeam of horizontal double drive cutting machine are designed with frame structure.

3. Five axis control system, with industrial touch screen, monitors real-time horizontal double drive V cutting machine status.

4. The horizontal double drive V cutting machine supports fixed-point grooving, processing of dissimilar work.

5. The crossbeam of horizontal double drive V cutting machine is driven by double servo motors, equipped with double high-power planetary reducer, running smoothly.

Technical data of Horizontal Double Drive V Cutting Machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of Horizontal Double Drive V Cutting Machine

- CNC system with large touch screen: Taiwan Superior

- AC Contactor: France Schneider

- Servo motor: Taiwan Superior

- Alloy knife: Korea Korloy

- Cylinder seal element: Japan Valqua

- Circuit breaker: France Schneider

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- Button: France Schneider

- Planetary reducer: Taiwan Liming

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus

Applications Industry:

The applications industries for our horizontal double drive V cutting machine can be as below:

- Stainless steel processing

- Elevator equipment

- Architectural decoration

- Kitchenware

FAQ

Q: How long it takes you to provide the designing options for us?

A: For standard horizontal double drive V cutting machine, we can offer you designing options at any time. For non-standard customized machine, we need 3 working days.

Q: How many staff abroad you sent to install the equipment?

A: We have detailed video tutorials, also support remote video contact. Customers can finish the installation and commissioning according to our tutorial. We can also arrange an engineer to offer on-site service.

Q: Can you can design the horizontal double drive V cutting machine according to our size?

A: Yes. We can design the horizontal double drive V cutting machine according to your requirements.
