Automatic Four Side V Cutting Machine
  • Automatic Four Side V Cutting MachineAutomatic Four Side V Cutting Machine
  • Automatic Four Side V Cutting MachineAutomatic Four Side V Cutting Machine
  • Automatic Four Side V Cutting MachineAutomatic Four Side V Cutting Machine

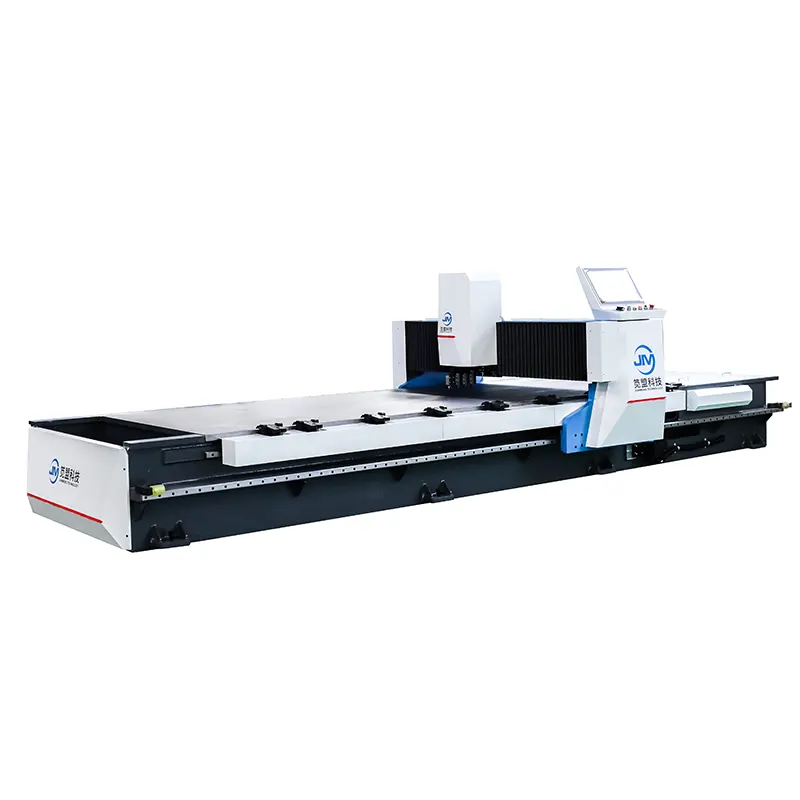

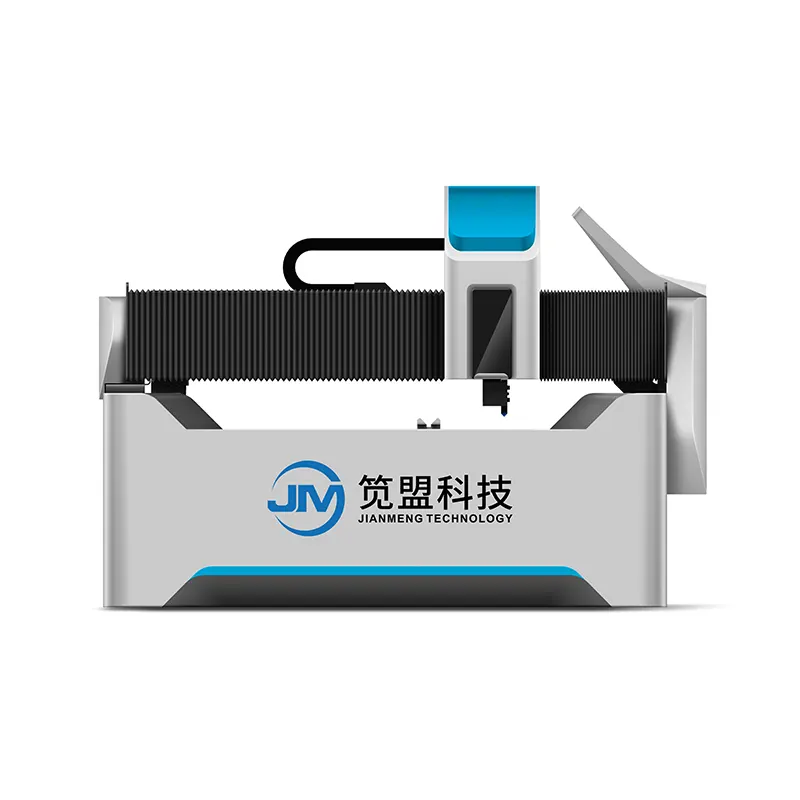

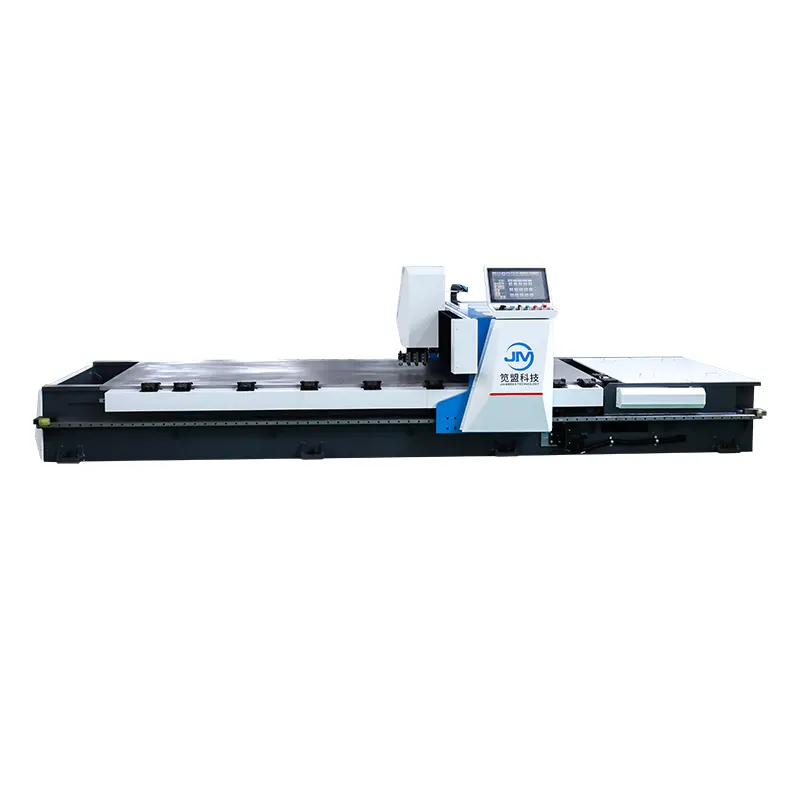

Automatic Four Side V Cutting Machine

As the professional automatic four side V cutting machine manufacturer in China, JM strictly controlled the product quality and witnessed the rapid and solid development of the brand benefiting from the high quality products. The automatic four side V cutting machine is more useful for machining on four sides.

Send Inquiry

Product Description

The V grooving machine manufacturer JM in China has the best automatic four side V cutting machine. The tool holder for this machine can be rotated and fixed at 90°. With the help of high power Y1 motor, the plate can be grooved in the transverse direction without manual rotation

Product Features:

1.The workpiece no longer needs to be shifted manually, which greatly improves the dimensional accuracy, saves labor costs, saves time costs and improves production efficiency.

1. The two pairs of parallel grooves perpendicularity to each other can be one-time formed by the four side grooving machine without turning workpieces.

2. The automatic four side V cutting machine is equipped with a new generation of multi-functional touch screen system.

Technical data of automatic four side V cutting machine

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

Components of automatic four side V cutting machine


- Servo motor: Taiwan Superior

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Planetary reducer: Taiwan Liming

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Circuit breaker: France Schneider

- Micro relay: France Schneider

- Single/double air switch : France Schneider

- Alloy knife: Korea Korloy

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus



Applications Industry:


JIANMENG automatic four side V cutting machine is used to grooving on four sides in many industries, such as:

- Metal furniture

- Bathroom

- Door industry

- Kitchenware


FAQ


Q: Can you send your staff to install the automatic four side V cutting machine for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.


Q: Can you can design the automatic four side V cutting machine according to our size?

A: Yes. We can design automatic four side V cutting machine according to your requirements.


Q: Where is your factory located?

A: Taixing, Jiangsu, China
