Automatic Four Side Grooving Machine
  • Automatic Four Side Grooving MachineAutomatic Four Side Grooving Machine
  • Automatic Four Side Grooving MachineAutomatic Four Side Grooving Machine
  • Automatic Four Side Grooving MachineAutomatic Four Side Grooving Machine

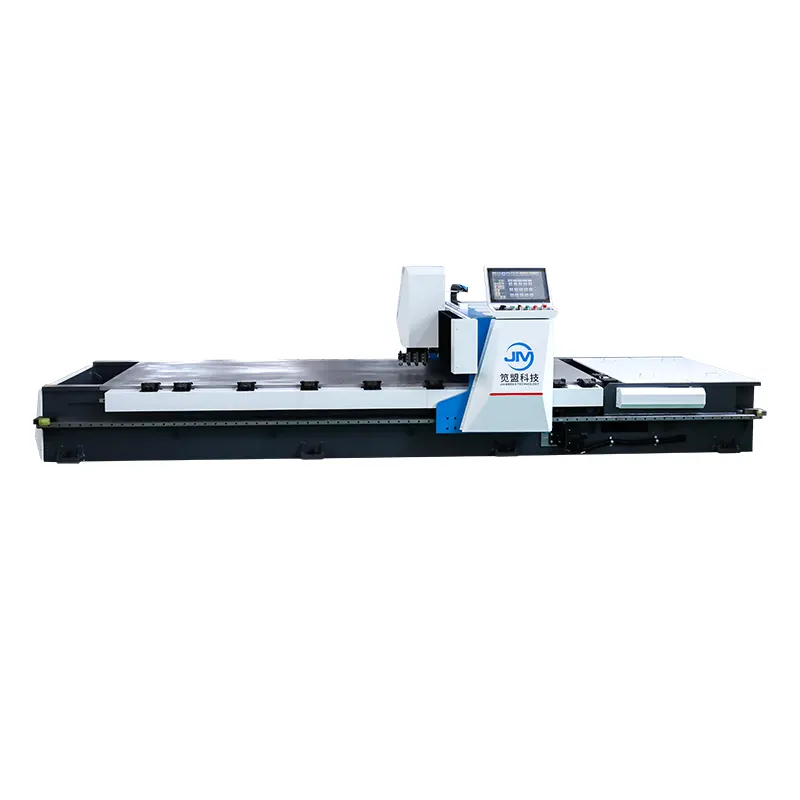

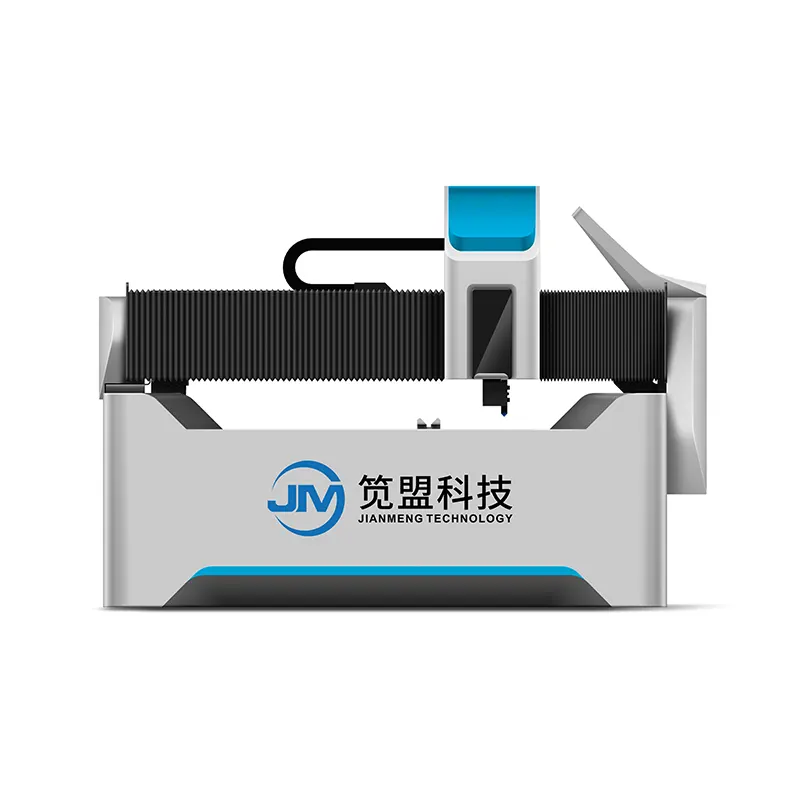

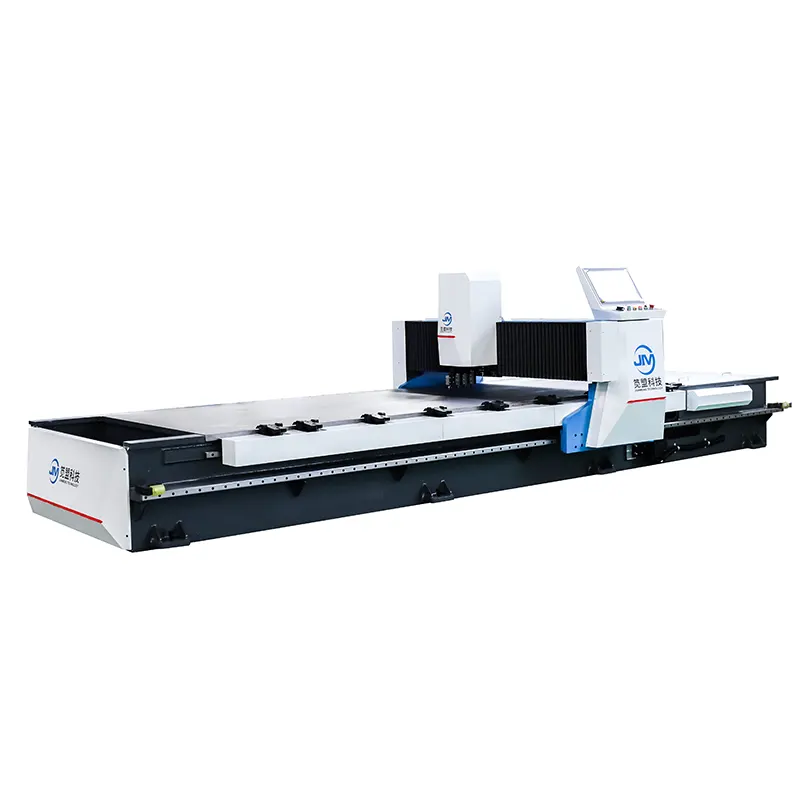

Automatic Four Side Grooving Machine

As a manufacturer that keeps up with the times in China, JM produces high energy automatic four side grooving machine. For the automatic four side grooving machine, there is no need to change the plate direction during machining, and is suitable for processing rigid boxes.

Send Inquiry

Product Description

JM is one of most professional V grooving machines manufacturers in China,  the tool carrier of automatic four side grooving machine is equipped with automatic rotation system, which can be used for machining on four sides.

Product Features:

1. The four side grooving machine can be used for processing on four sides based its tool carrier with automatic rotation system.

2. The two pairs of parallel grooves perpendicularity to each other can be one-time formed by the four side grooving machine without turning workpieces.

3. The four side grooving machine is equipped with a new generation of multi-functional touch screen system.

Technical data of automatic four side grooving machine

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

Components of automatic four side grooving machine


- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Servo motor: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Circuit breaker: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus



Applications Industry:


- Elevator equipment

- Door industry

- Architectural decoration

- Stainless steel processing

- Bathroom

- Advertising signage

- Kitchenware

- Hardware products

- Display props


FAQ


Q: How many days you need to install the automatic four side grooving machine?

A: Our automatic four side grooving machine is delivered to customer as a whole. It will take 3 hours for the installation and commissioning,then the machine can be used normally.


Q: Can you send your staff to install the automatic four side grooving machine for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.


Q: How many years have your company made automatic four side grooving machine?

A: We have been producing this machine over 10 years.
