Product Description

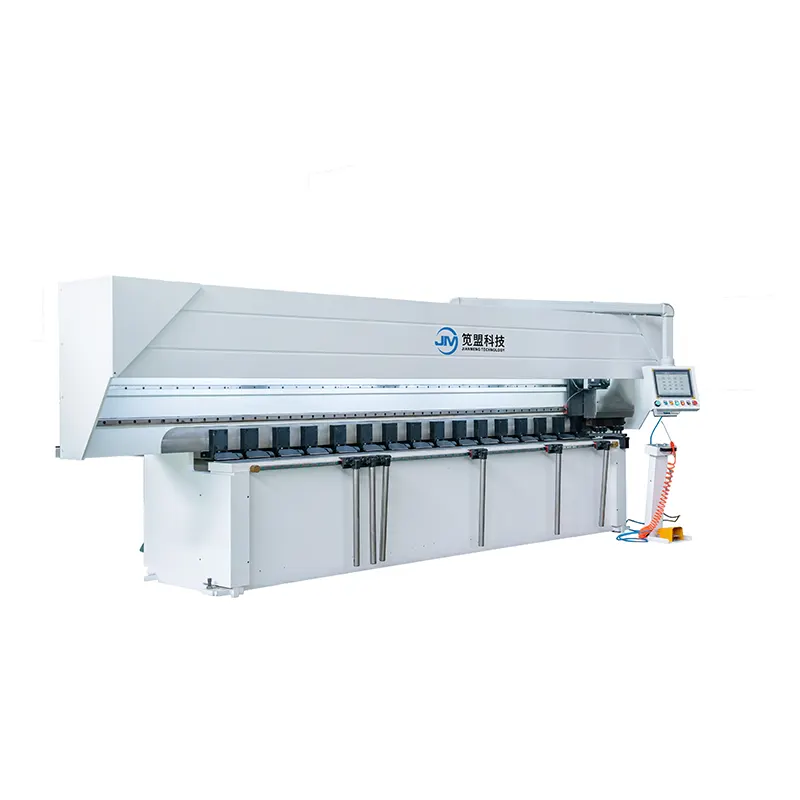

The Chinese V slotting machine manufacturer JM has great Vertical High Speed V Slotting Machine For Metal Plates, it adopts back feeding structure with fixed cross beam and replaceable working table. It completely solves the problem of deformation of working table, ensures the flatness of working table(+0.3mm)，and solves the problem of depth accuracy affecting the quality of slotting.

Product Features:

1. The fixed presser feet and the rear gauge presser feet are arranged alternately, evenly and densely.

2. International standardized electrical components.

2. The back gauge of vertical high speed V slotting machine for metal plates is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

Technical data of vertical high speed V slotting machine for metal plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical high speed V slotting machine for metal plates

- Button: France Schneider

- Proximity switch: Japan Omron

- CNC system with large touch screen: Taiwan Superior

- Servo motor: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Circuit breaker: France Schneider

- Cylinder seal element: Japan Valqua

- Hydraulic control system: Janpan Yuken

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Machine tool cable: Germany Igus

- Alloy knife: Korea Korloy

Applications Industry:

Our vertical high speed V slotting for metal plates is widely purchased by many customers for processing metal plates, such as:

- Kitchen

- Bathroom

- Elevator

- Architectural decoration

FAQ

Q: Are you a factory or a trading company?

A: We are a manufacturer. We have over 10 years of production experience.

Q: Can the vertical high speed V slotting machine for metal plates be installed under hot weather?

A: Yes

Q: How about after-sales service?

A: From project planning and starting, to production tracking and operation training, to equipment maintenance, spare parts selection and maintenance, we can provide considerate services.
