Product Description

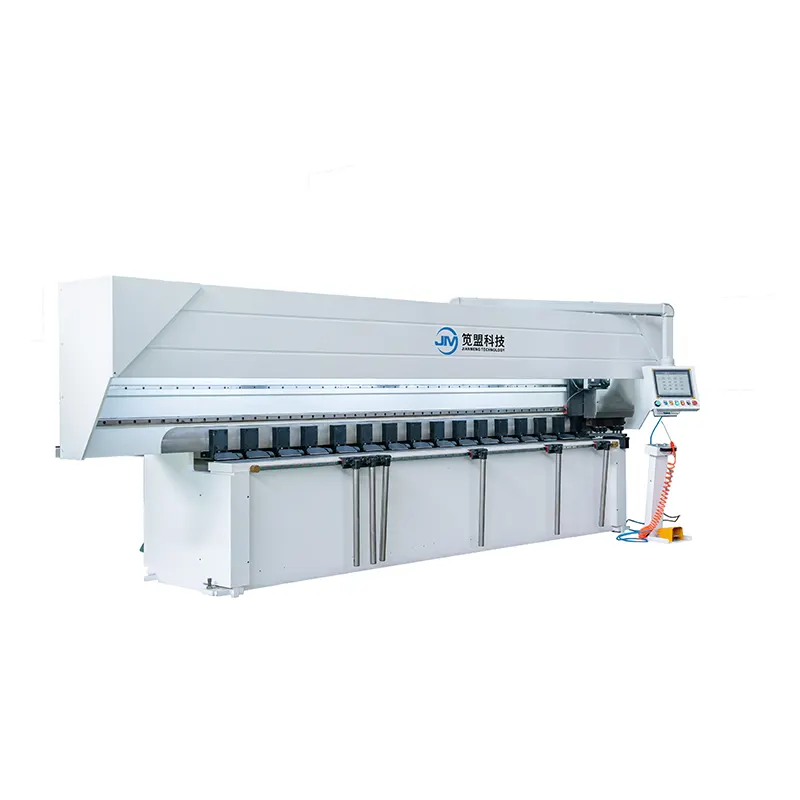

The Chinese V grooving machine manufacturer JM in China provides the vertical high speed V cutting machine with best quality, the overall rigidity is good and the deformation is small.

Product Features:

1. Frame type structure connected with high-strength bolt.

2. Integrated operating platform, high frequency surface quenching, high hardness, no trace left when processing mirror plates.

3. The fixed presser feet and the rear gauge presser feet are arranged alternately, evenly and densely.

4. The back gauge of vertical high speed V cutting machine is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

Technical data of vertical high speed V cutting machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical high speed V cutting machine

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Servo motor: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Cylinder seal element: Japan Valqua

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Circuit breaker: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus

Applications Industry:

Our vertical high speed V cutting machine has high utilization rate in a lot of industries, such as:

- Stainless steel processing

- Architectural decoration

- Bathroom

- Kitchen

FAQ

Q: How many production lines in your factory?

A: We have 6 production lines for producing vertical high speed grooving machines at the same time,which is far ahead in the grooving machine industry.

Q: Where is your company?

A: Taixing, Jiangsu, China

Q: If OEM is acceptable?

A: Yes.
