Vertical High Speed Slotting Machine
  • Vertical High Speed Slotting MachineVertical High Speed Slotting Machine

Vertical High Speed Slotting Machine

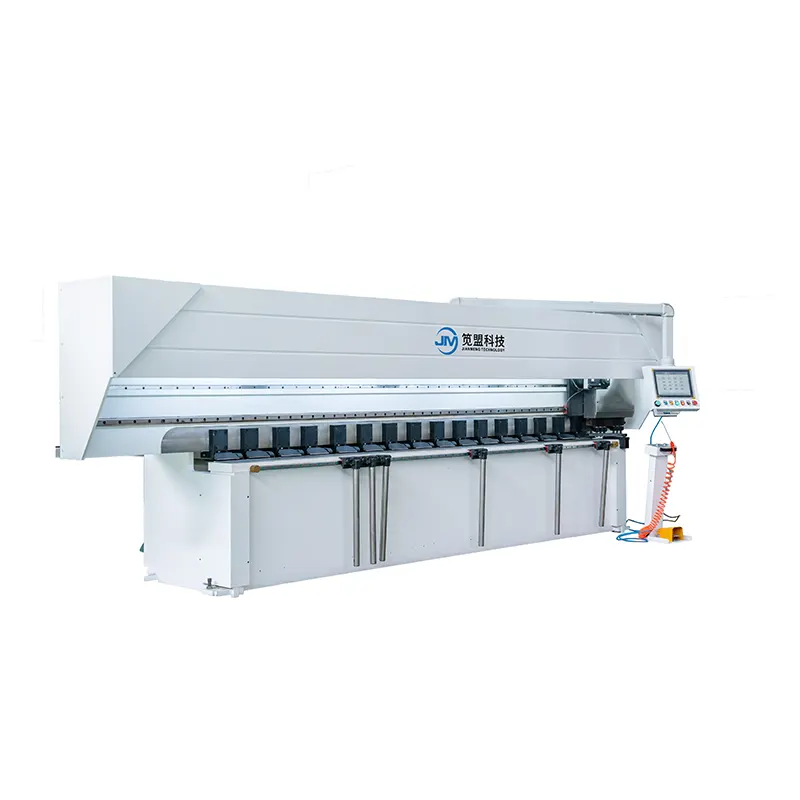

The vertical high speed slotting machine from Chinese V grooving machine manufacturer JM is a professional V grooving equipment, this machine can bring good economic benefits in processing of mirror plates.

Send Inquiry

Product Description

The whole structure for the Vertical High Speed Slotting Machine from Chinese manufacturer JM is frame vertical design. Whole steel plate integral welding and high-strength bolt connection.

Product Features:

1. The machine is composed by machine basis, crossbeam, blade shaft, CNC system, hydraulic plate press system, compressed air and coolant system.

2. Frame type structure connected with high-strength bolt.

3. The back gauge of vertical high speed slotting machine is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

4. Machine worktable using structural steel.

Technical data of vertical high speed slotting machine

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

Components of vertical high speed slotting machine


- Hydraulic control system: Janpan Yuken

- Servo motor: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Circuit breaker: France Schneider

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Cylinder seal element: Japan Valqua

- CNC system with large touch screen: Taiwan Superior

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Button: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus



Applications Industry:


Many industries make use of vertical high speed slotting machine, such as:

- Architectural decoration

- Stainless steel processing

- Bathroom

- Elevator


FAQ


Q: Where is your company?

A: Taixing, Jiangsu, China


Q: How about after-sales service?

A: From project planning and starting, to production tracking and operation training, to equipment maintenance, spare parts selection and maintenance, we can provide considerate services.


Q: How many production lines in your factory?

A: We have 6 production lines for producing vertical high speed slotting machines at the same time,which is far ahead in the grooving machine industry.
