Vertical Back And Forth V-Shaped Grooving Machine

As the leading Vertical Back And Forth V-Shaped Grooving Machine manufacturer in China, JM offer the back and forth V-shaped grooving machine with best quality. The vertical back and forth V -shaped grooving machine has all advantages of traditional vertical grooving machine and combine with the latest international slotting machine technology, which meets the actual needs of domestic customers.

Send Inquiry

Product Description

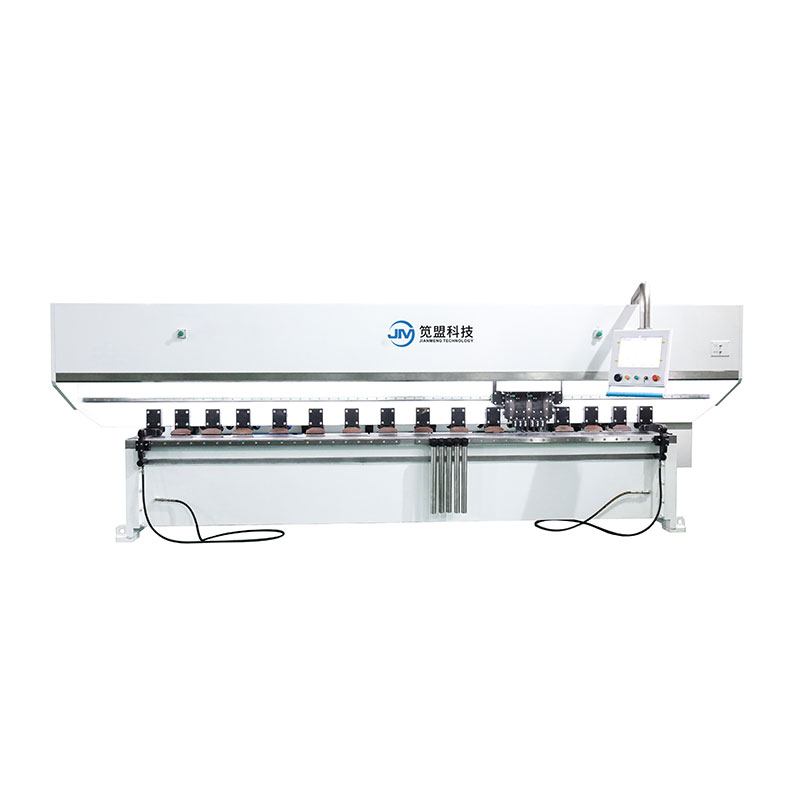

The vertical back and forth V-shaped grooving machine produced by Chinese manufacturer JM adopts back feeding structure with fixed cross beam and rigid working table.

Product Features:

1. Vertical back and forth V-shaped grooving machine is used for back and forth grooving, to improve the efficiency.

2. It has all the characteristics of GSVM series v grooving machine.

3. Double tool for Vertical back and forth V-shaped grooving machine carries back and forth working makes full use of the return time and power.

Technical data of vertical back and forth V-shaped grooving machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical back and forth V-shaped grooving machine

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Servo motor: Taiwan Superior

- Machine tool cable: Germany Igus

- Thermal relay: France Schneider

- Planetary reducer: Taiwan Liming

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Circuit breaker: France Schneider

- Heavy linear guide rail: Taiwan TBI

Applications Industry:

FAQ

Q: How many production lines in your factory?

A: We have 6 production lines for producing vertical back and forth V-shaped grooving machines at the same time,which is far ahead in the grooving machine industry.

Q: How many days you need to install the vertical back and forth V-shaped grooving machine?

A: Our vertical back and forth V-shaped grooving machine is delivered to customer as a whole. It will take 3 hours for the installation and commissioning,then the machine can be used normally.

Q: Can you send your staff to install the vertical back and forth V-shaped grooving machine for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.
