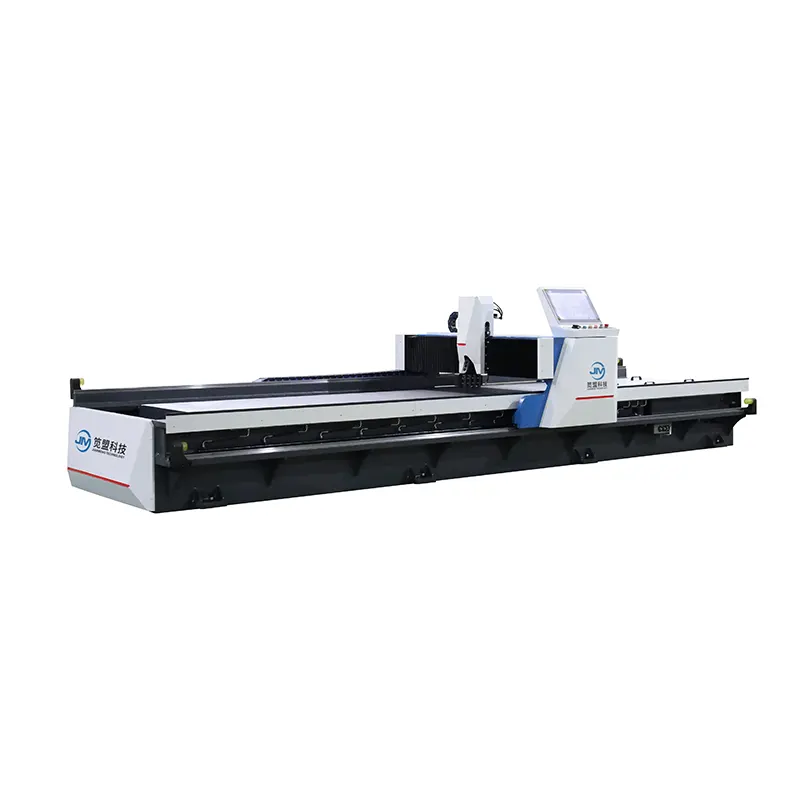

Horizontal High Speed V Slotting Machine For Stainless Steel Plates
  • Horizontal High Speed V Slotting Machine For Stainless Steel PlatesHorizontal High Speed V Slotting Machine For Stainless Steel Plates

Horizontal High Speed V Slotting Machine For Stainless Steel Plates

The V grooving machine manufacturer JM in China provides the most types of of Horizontal High Speed V Slotting Machine For Stainless Steel Plates, this machine also can be used for processing other metals plates, such as aluminium plates, galvanized plates and so on.

Send Inquiry

Product Description

The Horizontal High Speed V Slotting Machine For Stainless Steel Plates form Chinese V grooving machine manufacturer JM has high cost-effectiveness at medium to low utilization rates.

Product Features:

1. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

2. The working table of horizontal high speed V slotting machine for stainless steel plate is made of low alloy, and the accuracy of the table is within 0.03mm.

3. The whole horizontal high speed V slotting machine for stainless steel plate is stable after professional tempering heat treatment.

4. The horizontal high speed V slotting machine for stainless steel plate equips open plane, which is easy to use suction cup for loading and unloading.

5. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed V cutting machine for stainless steel plate status.


Technical data of Horizontal High Speed V Slotting Machine For Stainless Steel Plates

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

Components of Horizontal High Speed V Slotting Machine For Stainless Steel Plates


- Planetary reducer: Taiwan Liming

- Machine tool cable: Germany Igus

- CNC system with large touch screen: Taiwan Superior

- AC Contactor: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- Servo motor: Taiwan Superior

- Alloy knife: Korea Korloy

- Thermal relay: France Schneider

- Hydraulic control system: Janpan Yuken

- Micro relay: France Schneider

- Button: France Schneider

- Circuit breaker: France Schneider



Applications Industry:


- Kitchenware

- Elevator equipment

- Bathroom

- Anti skateboards

- Stainless steel processing

- Architectural decoration

- Anti skateboards


FAQ


Q: Can you send your staff to install the Horizontal High Speed V Slotting Machine For Stainless Steel Plates for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.


Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.


Q: Can you can design the horizontal high speed V slotting machine for stainless steel plate according to our size?

A: Yes. We can design equipment according to your requirements.
