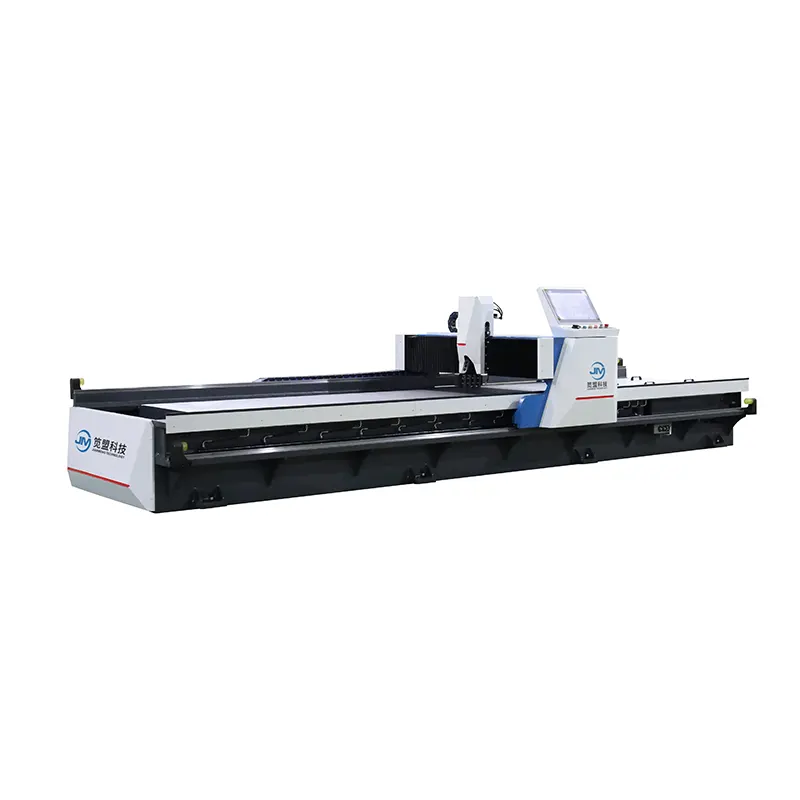

Horizontal High Speed V Cutting Machine For Metal Plates
  • Horizontal High Speed V Cutting Machine For Metal PlatesHorizontal High Speed V Cutting Machine For Metal Plates

Horizontal High Speed V Cutting Machine For Metal Plates

The Chinese manufacturer JM produces the horizontal high speed V cutting machine for metal plates, it is applicable to all metal plates, such as stainless steel plates, copper plates, galvanized plates and so on.

Send Inquiry

Product Description

The horizontal high speed V cutting machine for metal plates from Chinese V grooving machine manufacturer JM is rigid and durable.

Product Features:

1. The horizontal high speed V cutting machine for metal plates equips open plane, which is easy to use suction cup for loading and unloading.

2. The universal tool holder of horizontal high speed V cutting machine for metal plates can meet the clamping requirements of various cutting tools.

3. The working table of horizontal high speed V cutting machine for metal plates is made of low alloy, and the accuracy of the table is within 0.03mm.

4. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed V cutting machine status.

5. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.


Technical data of Horizontal High Speed V Cutting Machine For Metal Plates

Processability Processing Length 2500mm 3200 mm 4000 mm 6000mm
Processing Width 1250/1500mm 1250/1500mm 1250/1500mm 1250/150mm
Processing Thickness 0.4-5.0mm 0.4-5.0mm 0.4-50mm 0.4-50mm
Minimum edge distance 8mm 8mm 8mm 8mm
Processing speed Gantry(X-axis) 0-120 m/min 0-120m/min 0-120 m/min 0-120m/min
Tool holder(YI-axis)movement 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Movable clamping (Y2 axis) 0-60 m/min 0-60 m/min 0-60 m/min 0-60 m/min
Tool holder (Z-axis)up and down 0-10 m/min 0-10 m/min 0-10 m/min 0-10m/min
Processing accuracy Repeated positioning ermror of positioning axis 0.015mm 0.015mm 0.015mm 0.015mm
Minimum resolution of positioning axis 0.001mm 0.001mm 0.001mm 0001mm
Table Table flatness ±0.03mm ±0.03mm ±0.03mm ±0.03 mm
Externa


dimensions
Length 4400mm 5100 mm 5900 mm 7900mm
Processing Width 2000/2250mm 2000/2250mm 2000/2250mm 2000/2250mm
Height 1550mm 1550 mm 1550 mm 1550mm

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Cylinder seal element: Japan Valqua

- Servo motor: Taiwan Superior

- Proximity switch: Japan Omron

- Planetary reducer: Taiwan Liming

- Single/double air switch : France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Micro relay: France Schneider

- AC Contactor: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

- Heavy linear guide rail: Taiwan TBI

- Circuit breaker: France Schneider


Applications Industry:

- Architectural decoration

- Bathroom

- Door industry

- Kitchenware

- Elevator equipment

- Advertising signage

- Hardware products

- Stainless steel processing

FAQ


Q: Can you send your staff to install the horizontal high speed V cutting machine of metal plates for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.


Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.


Q: Can you can design the horizontal high speed V cutting machine for metal plates according to our size?

A: Yes. We can design equipment according to your requirements.
