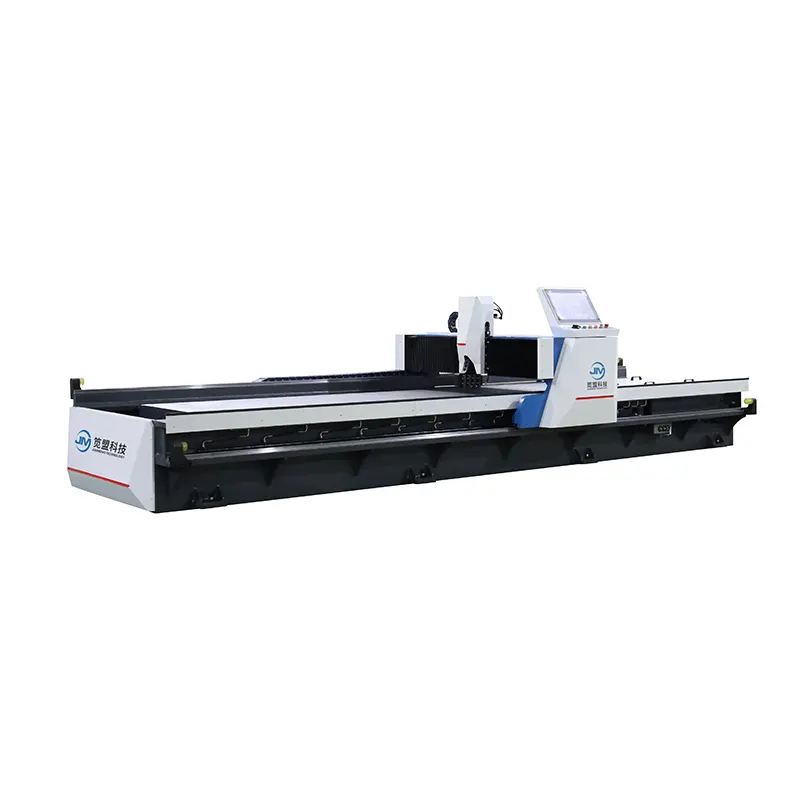

CNC Horizontal High Speed V Grooving Machine For Stainless Steel Plates

The CNC Horizontal High Speed V Grooving Machine For Stainless Steel Plates from Chinese manufacturer JM is not only to process stainless steel plate, but also can be used for cooper plates, aluminium plates, galvanized plates and son on.

Send Inquiry

Product Description

The Chinese V grooving machine manufacturer JM produces professional CNC Horizontal High Speed V Grooving Machine For Stainless Steel Plates, this machines is competitive in global market.

Product Features:

1. The working table of CNC horizontal high speed V grooving machine for stainless steel plate is made of low alloy, and the accuracy of the table is within 0.03mm.

2. The universal tool holder of CNC horizontal high speed V grooving machine for stainless steel plate can meet the clamping requirements of various cutting tools.

3. Four axis control system, with industrial touch screen, monitors real-time the CNC horizontal high speed V grooving machine for stainless steel plate status.

4. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

5. The CNC horizontal high speed V grooving machine for stainless steel plate equips intelligent system, easy to master and operate.

Technical data of CNC Horizontal High Speed V Grooving Machine For Stainless Steel Plate

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of Horizontal CNC High Speed V Grooving Machine For Stainless Steel Plate

- Planetary reducer: Taiwan Liming

- Heavy linear guide rail: Taiwan TBI

- Servo motor: Taiwan Superior

- CNC system with large touch screen: Taiwan Superior

- Cylinder seal element: Japan Valqua

- AC Contactor: France Schneider

- Single/double air switch : France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Proximity switch: Japan Omron

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

- Hydraulic control system: Janpan Yuken

- Circuit breaker: France Schneider

Applications Industry:

- Elevator equipment

- Architectural decoration

- Door industry

- Stainless steel processing

- Bathroom

- Advertising signage

- Kitchenware

- Hardware products

FAQ

Q: Can you send your staff to install the CNC horizontal high speed V grooving machine of stainless steel plate for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.

Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.

Q: Can you can design the CNC horizontal high speed V grooving machine for stainless steel plate according to our size?

A: Yes. We can design equipment according to your requirements.
